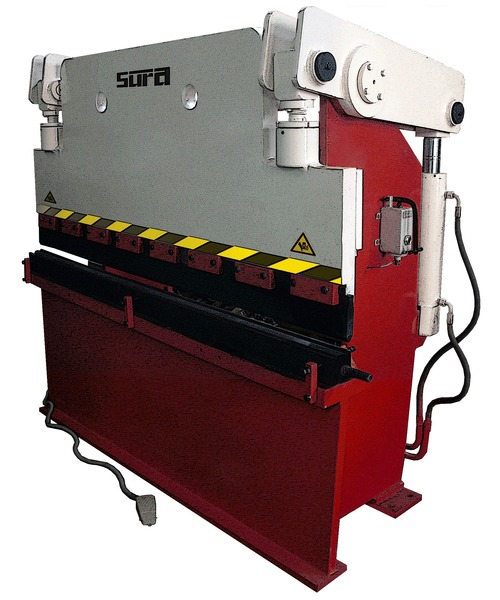

Hydraulic Press Brakes

Get a Price/Quote

MOQ : 1 Unit

Hydraulic Press Brakes Specification

Features
Automatic Bending Angle Control, Precise Operation, Rigid Construction

Temperature Range
0C to 55C

Power Source
Electric

Connectivity Type
Manual / CNC Options

Efficiency
High Efficiency

Sealing Type
Hydraulic Seals

Application
Sheet Metal Bending and Forming

Accessories
Standard V Block and Punch, Foot Pedal, Back Gauge

Operating Pressure
200 Bar

Mounting Type
Floor Mounted

Flow Rate
60 L/min

Body Material
Mild Steel

Type
Hydraulic

Structure
Heavy Duty Welded Frame

Voltage
415V / 3 Phase / 50 Hz

Hydraulic Press Brakes Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1 Months

About Hydraulic Press Brakes

Our huge experience has enabled us to manufacture and supply top quality Hydraulic Press Brakes. Gun metal bushes and liners, procured from the authorized vendors of the market are used in the manufacturing process of these brakes. The brakes we offer are designed with an interlocking steel frame, which ensures longer service life. Our team of qualified professionals manufacture these Hydraulic Press Brakes, following all the norms and parameters laid by the industry.

Features:

High performance
Low energy consumption
Low maintenance
Easy to operate

Salient features:

All steel construction with interlocked frame
Gun metal bushes and liners
Elec. motor make KIRLOSKAR/NGEF/CROMPTON
Starter of L&T/BCH make only
Carbon steel die punch.
Goose neck punch can be provided at extra cost.
Centralized lub pump.
Yuken/Dowty/Hitech hydraulic pump
Control valves of reputed make.
Rear mounted cylinders for low working pressure
Inch-single-continuous cycle with foot switch.

MODEL	SPBH 30	SPBH 40	SPBH 50	SPBH 60	SPBH 80	SPBH 100	SPBH 125	SPBH 160	SPBH 200	SPB 300	SPB 400	SPBH 500
TONNAGE MT.	30	40	50	60	80	100	125	160	200	300	400	500
Bndg Capacity	2x2000	2x2500	3.15x2000	3x2500	4x2500	5x2500	5x3000	8x2500	8x3000	12x3000	16x3000	20x4000
			2.5x2500		3x3000	4x3000	6x2500	6x3000	10x2500x	16x2500
Table	125	170	170	170	170	170	220	220	220	300	300	300
Clear Pass	2000	2000	1500	2000	2000	2000	2500	2500	2500	3000
			2000		2500	2500
Ram Stroke	100	100	100	125	125	150	150	150	200	200	225	250
Open Ht.	280	280	300	325	350	350	350	380	410	410	500	530
Throat Depth	200	200	200	250	250	300	300	325	325	350	350	350
Motor Hp	3	5	5	5	7.5	10	10	15	20	20	30	50
Approach	25	40	40	40	45	36	40	35	30	25	25	25
Pressing	5	5	4.5	4.5	5	4	4	4	4	4	4	4
Wt.	2.5	3	3.4	3.9	4.5	5.6	7	8.8	9.5	12	18	27
			3.7		5	6.2

Advanced Hydraulic Technology

Our press brakes employ robust hydraulic systems combined with precise control features, ensuring accurate sheet metal bending even under heavy duty applications. Reliable hydraulic seals and intelligent design contribute to efficiency and longevity across diverse operating conditions.

User-Friendly Operation

With automatic bending angle control and intuitive floor-mounted setup, these machines provide ease of use for operators. The inclusion of manual and CNC connectivity extends flexibility, making adjustments and integration straightforward in both basic and advanced production environments.

Comprehensive Accessories Package

Each press brake is supplied with essential accessories such as standard V block and punch, foot pedal, and back gauge. These components enable seamless operation right out of the box, facilitating both manual and automated workflows for metal forming.

FAQs of Hydraulic Press Brakes:

Q: How does the automatic bending angle control function in mild steel hydraulic press brakes?

A: The automatic bending angle control system uses sensors and precise hydraulic adjustments to maintain consistent bending angles in sheet metal, reducing manual intervention and improving accuracy during forming processes.

Q: What are the main benefits of using a heavy duty welded frame for hydraulic press brakes?

A: A heavy duty welded frame in mild steel ensures greater rigidity and stability, minimizing deformation during high-pressure operation, and significantly enhances machine durability for demanding industrial tasks.

Q: When is it recommended to use manual versus CNC connectivity for sheet metal bending?

A: Manual connectivity is ideal for simple, small-batch jobs requiring straightforward adjustments, while CNC options are best suited for repetitive, complex, or high-volume bending tasks that demand precise and programmable control.

Q: Where can these hydraulic press brakes be installed and effectively operated?

A: These models are designed for floor mounting in industrial workshops, factories, and fabrication units across India, where stable power supply (415V/3 Phase) and operational space are available.

Q: What is the typical operating process for these hydraulic press brakes?

A: Operators set the required bending parameters using the machine interface, position the sheet metal with the back gauge, and initiate the cycle using the foot pedal. The hydraulic system then executes the bending with controlled pressure and angle adjustment.

Q: Which accessories are included with the hydraulic press brake, and how do they aid usage?

A: Standard accessories such as the V block, punch, foot pedal, and back gauge assist by providing immediate tooling for bending, ergonomic operation, and accurate material positioning, optimizing the forming process for both novice and experienced users.

Q: What are the advantages of using high efficiency hydraulic seals in press brake operation?

A: High efficiency hydraulic seals prevent fluid leakage, maintain consistent pressure, and contribute to smoother, more reliable machine performance, resulting in reduced maintenance and enhanced operational safety.
