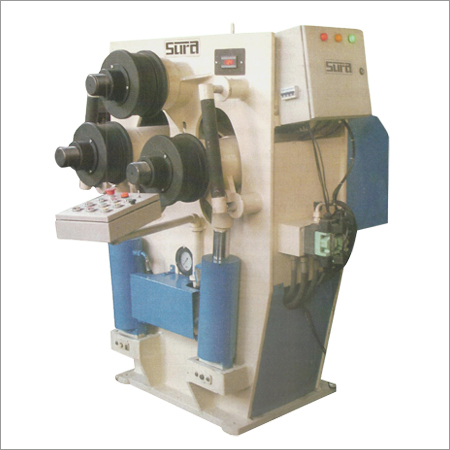

Profile Bending Machine

Get a Price/Quote

MOQ : 1 Unit

Profile Bending Machine Specification

Flow Rate
35 L/min

Efficiency
High Working Efficiency

Accessories
Standard Dies, Foot Pedal, Digital Readout

Mounting Type
Floor Mounted

Application
Bending of steel profiles, angles, channels, pipes, and tubes

Temperature Range
0C to 60C

Connectivity Type
Manual & Digital Control Panel

Power Source
Electric Motor Driven Hydraulic System

Body Material
Heavy Duty Steel

Type
Hydraulic Profile Bending Machine

Structure
Robust Welded Frame

Force
Up to 50 Ton

Speed
Variable Speed Control

Voltage
415V / 3 Phase / 50 Hz

Profile Bending Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1 Months

About Profile Bending Machine

To meet the exact demands of our clients, we are able to manufacture and supply Profile Bending Machine. Our qualified professionals make use of components like solid bars, I beams, channels, angle, tees, tubes and pipes to manufacture high-grade machines. The machine which we offer is made with a double pinch design which is able to bend profiles at both ends and roll without removing the profile. It is fitted with a LED display and a control panel for easy operation. To assure quality finished Profile Bending Machine to our customers, high-ranking officials examine every part of the machine.

Features:

Durable
Low maintenance
Energy efficient
Easy to operate

Other details:

Materials
Carbon steel,Mild steel, Stainless steel, Brass, Copper, Aluminium etc.

Profiles
Hot-Cold rolled, electro welded, pre painted, extruded, roll formed, pressed.

Verstality modular rolls bend more shapes, materials,profile.
Durability rugged frames, No castings, hardened shafts on self aligning roller bearings.
Productivity push button controls, mobile consoles, multiposition auto repeat systems.
Safety low voltage controls, electrical interlocking.
Vertical-Horizontal operation, easy loading, low working height.
Simple,Fast & Safe to operate, one person operation.
Best suited for bend radii over 5 times material diameter.

Specifications		SSB 65	SSB 85	SSB 105	SSB 125
Bending Capacity	cc	12	25	35	50
Shaft Dia	mm	60	80	100	120
Bending Speed	m/min	5.5	6.5	5	5
Roller Dia	mm	175	250	320	390
Driven Rolls	Nos	3	3	3	3
Drive Motor	Kw	2.2	3.7	5.5	7.5
Approx Weight	Kg	950	1500	3000	4000

Heavy Duty Hydraulic Bending Solutions

This profile bending machine features a strong, welded steel frame and heavy duty construction, ensuring longevity and stability during heavy use. Its robust design allows for the effective handling of large steel profiles and demanding bending tasks in industrial environments.

Precision Control and Efficiency

The machine is equipped with variable speed control and a powerful hydraulic system, enabling operators to customize the bending process for different materials and shapes. Digital and manual control panels offer flexibility and precise adjustments for high working efficiency.

FAQs of Profile Bending Machine:

Q: How does the hydraulic profile bending machine operate?

A: This machine integrates an electric motor-driven hydraulic system to apply up to 50 tons of force, bending profiles with precision. Operators control the process using manual or digital control panels, along with a standard foot pedal for hands-free operation.

Q: What types of materials and profiles can be bent with this machine?

A: It is suitable for bending a variety of steel profiles, including angles, channels, pipes, and tubes. The machine is designed to handle heavy duty materials with consistent results across different shapes and sizes.

Q: When is variable speed control beneficial during operation?

A: Variable speed control enables users to adjust the bending speed according to specific material requirements and complexity, enhancing productivity and ensuring the best possible finish without compromising accuracy.

Q: Where should the profile bending machine be installed?

A: The machine is designed for floor-mounted installation in industrial workshops or manufacturing facilities, providing stability during operation and accommodating larger and heavier workpieces safely.

Q: What is the process for setting up the machine for a new bending task?

A: Operators first select the appropriate standard dies for the material and profile shape. After mounting the workpiece, they set the desired parameters using the control panel and adjust speed, force, and temperature range as needed to match the requirements.

Q: How can users maximize the working efficiency of this machine?

A: To achieve high efficiency, users should optimize the control settings, use digital readouts for accuracy, maintain the hydraulic system regularly, and select suitable dies for each application, minimizing downtime and ensuring precise bends.

Q: What are the main benefits of using this hydraulic profile bending machine?

A: Key benefits include high force capacity, durable construction, adaptable speed control, precise digital and manual operation, and the versatility to bend diverse steel profiles efficiently. It enhances productivity and provides consistent, high-quality results for industrial applications.
