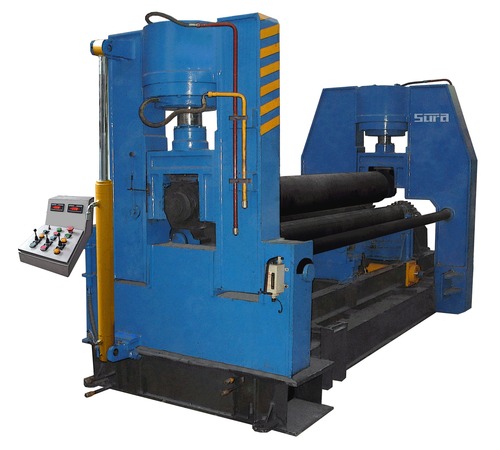

Hydraulic Plate Bending Machine

Get a Price/Quote

MOQ : 1 Unit

Hydraulic Plate Bending Machine Specification

Mounting Type
Floor Mounted

Efficiency
High Efficiency

Flow Rate
40 L/min

Features
Digital Control Panel, Precision forming, Emergency Stop, Overload Protection

Sealing Type
Hydraulic Seals

Application
Sheet Metal Bending, Engineering Workshops, Fabrication Units

Operating Pressure
Up to 250 Bar

Accessories
Standard Dies, Back Gauge, Foot Switch

Power Source
Electric

Body Material
Mild Steel

Type
Hydraulic Plate Bending Machine

Structure
Heavy Duty Welded Structure

Force
Up to 300 Tons

Speed
Variable Speed Control

Voltage
415 V AC, 3 Phase

Hydraulic Plate Bending Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1 Months

About Hydraulic Plate Bending Machine

We assure our valued clients with high quality Hydraulic Plate Bending Machine. These offered machines are the best alternative to a conventional four roll machine as these are installed with compact and high performance hydraulics. Offered machine is very easy to operate as we offer it with a mobile control panel for one man operation. The plates are bended according to the thickness, width and strength of the material. Quality steel and components are brought from the reputed vendors of the industry to manufacture the Hydraulic Plate Bending Machine.

Features:

Non-corrosive
Sturdy construction
Low maintenance
Wear and tear resistant

Salient Features

Pre bending of both ends with option of pre pinching or post pinching.
Compact & reliable Hydraulics.
Incline able top roll facility for Cone Bending.
Moveable control panel for one man operation.
Centralized lubrication pump.
Swing arm and counter balance for removing rolled shells.
Parallelism of top roll w.r.t. Bottom rolls by digital read out.
Electric motors of reputed makes (KIRLOSKAR/SIEMENS/CROMPTON/ABB.
Switch gear from L&T/TC/BCH/SIEMENS.

Specifications			Roll			Motor
Plate thickness (mm)	Plate Width (mm)	Folding Capacity (ton)	Top roll Dia (mm)	Bottom roll Dia (mm)	Rolling H.P.	Hydraulic Power Pack
10	2000	55	220	135	7.5	2 H.P.
	2500	65	240	150	10.0	2 H.P.
	3000	80	300	170	12.5	2 H.P.
12	2000	85	240	170	10	2 H.P.
	2500	105	270	180	12.5	2 H.P.
	3000	125	250	180	12.5	5 H.P.
16	2000	125	250	180	12.5	5 H.P.
	2500	160	290	190	15	5 H.P.
	3000	190	320	210	20	5 H.P.
20	2000	160	270	200	15	5 H.P.
	2500	190	290	290	20	5 H.P.
	3000	230	340	340	25	5 H.P.
25	2000	200	290	230	20	7.5 H.P.
	2500	250	320	250	20	10 H.P.
	3000	280	360	270	30	10 H.P.
30	2500	300	360	250	30	10 H.P.
	3000	350	400	270	35	10 H.P.
	4000	500	440	310	45	12.5 H.P.
35	2500	400	400	270	35	12.5 H.P.
	3000	450	450	290	50	15 H.P.
	4000	520	530	350	60	15 H.P.
45	2500	480	500	350	50	15 H.P.
	3000	520	580	390	60	15 H.P.
	4000	6000	620	410	70	20 H.P.
60	2500	800	650	400	60	20 H.P.
	3000	1000	680	460	75	25 H.P.
	4000	1200	710	500	100	25 H.P.

Advanced Hydraulic Bending Technology

This machine utilizes cutting-edge hydraulic systems paired with rugged mild steel construction, ensuring robust performance, longevity, and exceptional forming precision. The heavy-duty welded frame provides rigidity, minimizing deflection during operation and accommodating heavy sheet bending tasks for consistent results.

Precision Control and Safety Features

Equipped with a digital control panel, operators can easily set parameters like angle, pressure, and speed. Variable speed control promotes operational flexibility, while integrated emergency stop and overload protection features guarantee user safety and prevent machine damage during high-force tasks.

Versatile Applications & Accessories

This hydraulic plate bending machine is specifically designed for sheet metal bending tasks in fabrication units and engineering workshops. It comes with essential accessories such as standard dies, a back gauge for repeatability, and a foot switch for hands-free operation, catering to a broad range of commercial bending needs.

FAQs of Hydraulic Plate Bending Machine:

Q: How does the hydraulic plate bending machine ensure precision and efficiency during operation?

A: The machine features a precision digital control panel and variable speed control, allowing operators to adjust force, speed, and angle with exactitude. Its heavy-duty welded structure and high operating pressures contribute to stable, repeatable, and efficient sheet bending operations.

Q: What is the process for operating the hydraulic plate bending machine safely?

A: Operators must securely mount the machine on the floor and use the digital control panel to set bending parameters. The emergency stop and overload protection mechanisms ensure the machine can be halted instantly in case of unexpected scenarios, while the foot switch allows for safe, hands-free operation.

Q: When is this hydraulic bending machine most beneficial for workshops or fabrication units?

A: This machine is especially beneficial for projects requiring high-precision, high-volume, or heavy-duty metal bending, such as in engineering workshops or fabrication units managing repetitive and consistent bends in sheet metal components.

Q: Where can this hydraulic plate bending machine be installed?

A: Designed with a floor-mounted structure, the machine requires a stable floor surface and access to a 415 V AC, 3-phase power supply, making it suitable for installation in industrial settings like workshops and manufacturing plants across India.

Q: What are the typical applications of this hydraulic plate bending machine?

A: It is commonly used for sheet metal bending in engineering workshops and fabrication units. Its robust design makes it ideal for manufacturing components, panels, enclosures, or any sheet forming tasks requiring consistent quality and accuracy.

Q: Which accessories are included with the machine and what is their purpose?

A: The machine includes standard dies for various bending operations, a back gauge to ensure repeatable precision in bends, and a foot switch to enable hands-free machine activation, all of which enhance productivity and ease of use.
