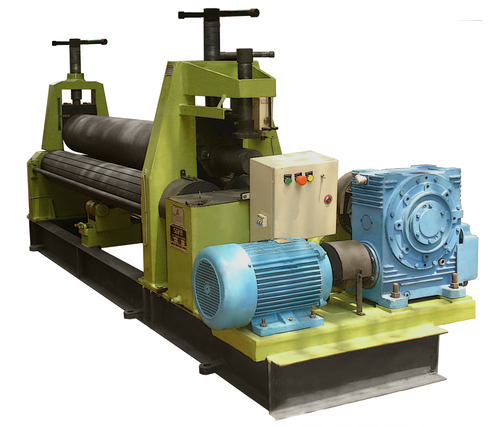

Pyramid Plate Bending Machine

Get a Price/Quote

MOQ : 1 Unit

Pyramid Plate Bending Machine Specification

Power Source
Electric Motor

Operating Pressure
200 Bar (for hydraulic models)

Flow Rate
24 L/min (for hydraulic models)

Temperature Range
5C to 45C

Efficiency
High Accuracy & Efficiency

Sealing Type
Oil Sealed Bearings

Features
Gear & Motor Driven Rolls, Reversible Rolling, Cone Bending, Rigid Construction, Manual & Motorized Operation

Mounting Type
Floor Mounted

Accessories
Digital Readout, Lifting Hooks, Emergency Stop, Set of Roller Supports

Application
Bending and Rolling of Steel Plates for Construction, Machinery, Structural Fabrication

Body Material
Mild Steel

Type
Pyramid Plate Bending Machine

Force
Up to 150 Tons (varies by model)

Speed
Rolling speed up to 5 m/min (depending on plate thickness)

Voltage
415V, 3 Phase, 50 Hz

Pyramid Plate Bending Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1 Months

About Pyramid Plate Bending Machine

To suit the diverse needs of our clients, we are able to offer high-grade Pyramid Plate Bending Machine. The machine offered by us are made using high-grade steel and components, which are specially designed to offer longer service life and high performance. Our talented professionals make use of advanced tools and cutting-edge technology during the manufacturing process of these machines. Specially designed for bending plates, the Pyramid Plate Bending Machine is usually used in automobile industries, steel industries and workshops.

Salient features:

All steel fabricated housing with box type construction.
EN 9 class IV forged rolls.
EN 9 gears in oil filled gear box.
EN 9 screws.
Worm reducer of Radicon / Elecon make.
Bronze worm gear in presure assemblies (for BR3PP model).
digital readout for buttom roll movement (optional, at extra cost)
Cardon shafts with gun metal liners (for BR3PP model.)
TEFC sq. cage electric motor of KIRLOSKAR / CROMPTON / SIEMENS make.
Thick gun metal bush bearings.
Centralized control panel with switch gear from L&T/BCH/HAVELLS.
Center support to bottom rolls, (only for BRPI model).
Heavy joist base frame.
Hinged side for easy removal of shell without removing top roll.

Capacity Th x Width	Roll Top	Diameter Bottom	Motor
6x1250	155	110	5
10x1250	150	125	5
12x1250	170	140	5
16x1250	195	150	7.5
20x1250	205	165	7.5
25x1250	250	200	10
30x1250	280	220	15
36x1250	310	230	20
3x1500	120	105	3
6x1500	150	125	5
10x1500	180	140	7.5
12x1500	190	150	7.5
16x1500	200	160	10
20x1500	210	170	12.5
25x1500	260	200	15
30x1500	290	200	20
36x1500	320	230	25
3x2000	135	105	3
6x2000	170	150	5
10x2000	200	160	7.5
12x2000	220	180	10
16x2000	250	190	12.5
20x2000	270	210	15
25x2000	290	230	20
30x2000	320	250	25
36x2000	360	270	30
3x2500	150	125	5
6x2500	200	160	7.5
10x2500	240	170	10
12x2500	250	180	15
16x2500	280	210	20
20x2500	295	220	20
25x2500	320	230	25
30x2500	360	250	30
36x2500	400	270	35
6x3000	220	170	10
10x3000	250	180	12.5
12x3000	270	210	15
16x3000	290	220	20
20x3000	330	230	25
5x3000	360	250	30
30x3000	400	270	35
36x3000	430	280	40

Engineered for High Precision and Versatility

The Pyramid Plate Bending Machine ensures high accuracy and efficiency with its rigid construction and advanced features. Suitable for a diverse range of applications, it supports cone bending, reversible rolling, and can be operated both manually and motorized. Its robust design allows consistent performance across various industrial environments.

Optimized for Industrial Applications

With a force capacity of up to 150 tons and rolling speeds reaching 5 meters per minute, this machine adapts to the demands of construction, machinery manufacturing, and structural engineering projects. The high-efficiency electric motor, hydraulic pressure up to 200 bar, and precise digital readout guarantee optimal results while maximizing productivity.

FAQs of Pyramid Plate Bending Machine:

Q: How does the Pyramid Plate Bending Machine handle different thicknesses of steel plates?

A: The machine is equipped with gear and motor-driven rolls, allowing it to adjust rolling speed and force according to the plates thickness. Its robust build and up to 150 tons of force ensure precise bending results for a wide variety of steel plate sizes and thicknesses.

Q: What are the key benefits of using this machine in structural fabrication?

A: This machine delivers high accuracy, consistent rolling, and cone bending capabilities, making it ideal for structural fabrication. Features like digital readout and emergency stop enhance operational efficiency and worker safety, resulting in reliable and repeatable results.

Q: When should a motorized operation be used instead of manual operation?

A: Motorized operation is recommended when working with thicker plates or higher volumes, as it delivers greater force and efficiency. Manual mode is suitable for thinner plates or when intricate adjustments are needed for specialty jobs.

Q: Where is the optimal place to install and operate the Pyramid Plate Bending Machine?

A: The machine is designed for floor mounting, ensuring stable and safe operation. Installation should be conducted in a spacious, industrial facility with suitable electrical supply (415V, 3 phase) and a temperature-controlled environment between 5C and 45C.

Q: What is the process for bending and rolling plates with this machine?

A: Begin by positioning the plate between the three rolls. Adjust the settings according to the desired bend using the digital readout for precision. Select manual or motorized mode, and initiate rolling, with the option to reverse or form cones as needed. Roller supports assist in handling larger plates.

Q: How does the oil-sealed bearing system contribute to the machines performance?

A: Oil-sealed bearings reduce friction and wear, ensuring smooth and consistent roll movement. This sealing type also contributes to the machines longevity, minimizing maintenance and downtime.
